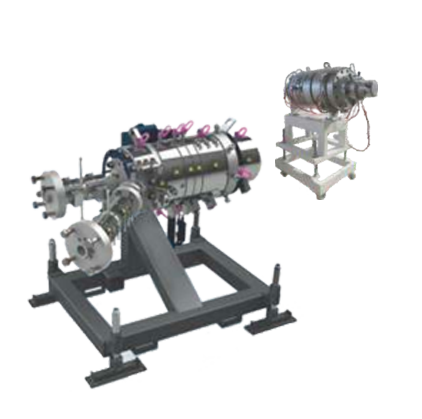

DIE HEAD I HDPE/PPR PROCESSING
Helix Features For The PE/PPR Die Head
- HELIX Provide Most Versatile Spiral Mandrel Design.
-
Consistent Product Quality for all pipe sizes.
-
Short purging time.
-
Improved inner pipe surfaces.
-
Optimized back pressure allows a balance of compression & melt temperature control.
-
Uniform melt Flow can be achieved yielding minimum wall thickness deviation.
Dual Head Die Specification
| Model |
|
HSM 50 |
HSM 200 |
| Pipe Range |
mm |
Dec-50 |
20-200 |
| Output Capacity up to |
kg |
400 |
1000 |
| No. of Layers |
- |
1 |
1 |
Single Head Die Specification
| MODEL |
|
HSM 50 |
HSM 200 |
HSM 250 |
HSM 450 |
HSM 630 |
HSM 800 |
| Pipe Range |
mm |
Dec-50 |
20-200 |
63-250 |
90-450 |
225-630 |
315-800 |
| Output Capacity up to |
kg |
200 |
500 |
800 |
1000 |
1200 |
1500 |
| Internal Pipe Cooling |
- |
N.A |
N.A |
IPC |
IPC |
IPC |
IPC |
