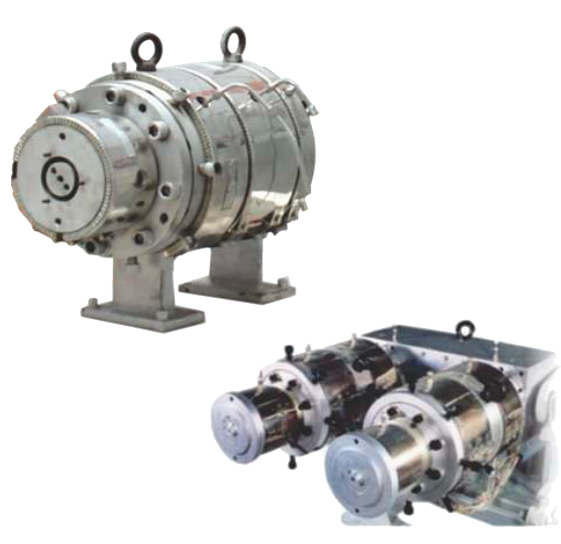

DIE HEAD I PVC PROCESSING
Helix Features For The PVC Die Head
- High Volume Low Pressure Design ensures wider thickness range.
-
Dual die with dual downstream for pipe sizes 20-110 mm & 63-200 mm.
-
Modular design.
-
Optimizing back pressure enables compression equilibrium and temperature control of the melt.
-
Extruder Utilization from 30 % to 100 % in larger dia of pipes .
-
Top Quality Diamond Chrome Plating's.
-
Twin die heads for higher output in smaller diameters.
-
Dia Head With Trolley for P-200 and above models for easy movement.
Single Head die Specification
| Model |
|
HSHD 63 |
HSHD 110 |
HSHD 200 |
HSHD 250 |
HSHD 315 |
HSHD 400 |
HSHD 630 |
| Pipe Range |
mm |
20-63 |
20-110 |
63-200 |
90-250 |
110-315 |
160-400 |
250-630 |
| Output Capacity |
kg |
100 |
200 |
320 |
425 |
550 |
700 |
1000 |
Twin Head die Specification
| Model |
|
HTHD 50 |
HTHD 63
|
HTHD 110
|
HTHD 200
|
| Pipe Range |
mm |
19-50
|
20-63
|
20-110
|
63-200
|
| Output Capacity |
kg |
200 |
200 |
400 |
850 |
