SINGLE SCREW EXTRUDER

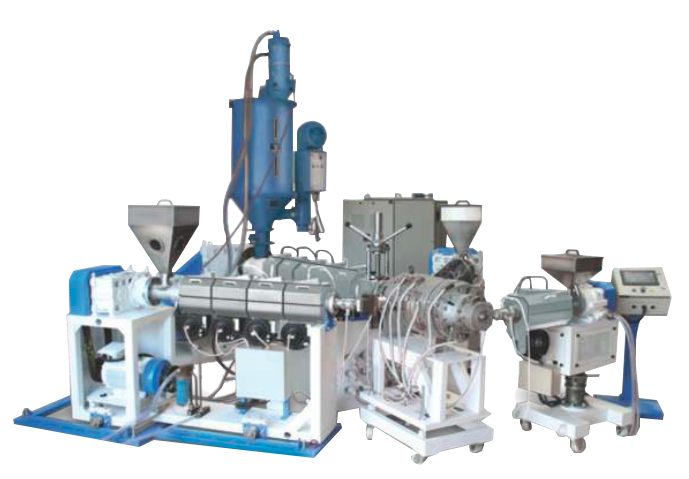

SINGLE SCREW EXTRUDER – HELIX SPEED SERIES FOR HDPE/PPR
Helix Single Screw Extruder/SPEED (HDPE/PPR) are offered for extrusion of polyose n (HDPE,PP,PPR,LLDPE,LDPE) pipes. Offered Range from screw dia 25mm to 120 mm .
Helix Features For The Single Screw Extruder.
- Standard Proven Technology ensures excellent linearity of specic output. L/D ratio of 37:1 ensures excellent melt homogeneity.
- Wear resistant Tungsten Carbide coating ensures long screw life at high rpm.
- With the Barrier Screw And Grooved feed design extruder.
- Direct coupled design ensures minimum transmission loss.
- Versatile screw designed for PE & PP Random Copolymer.
Barrier Screw Design
- It allows high homogenous plasticizing less material slippage and higher output.
Grooved feed system
- Pressure invariance
- Uniform throughout and melt Temperature
- Higher productivity compared to conventional design.
- Improved material conveying capacity
TECHNICAL SPECIFICATION
| MODEL | Speed 45-22 | Speed 45-45 | Speed 45-55 | Speed 45-75 | Speed 45-90 | Speed 60-110 | Speed 60-132 | Speed 75-200 | |
| Screw Diameter | mm | 45 | 45 | 45 | 45 | 45 | 60 | 60 | 75 |
| L/D Ratio | - | 37:1 | 37:1 | 37:1 | 37:1 | 37:1 | 37:1 | 37:1 | 37:1 |
| Main Drive | kw | 22 | 45 | 55 | 75 | 90 | 110 | 132 | 200 |
| Output In | kg | 60-80 | 140-160 | 180-190 | 220-240 | 300-330 | 380-400 | 500-550 | 650-700 |
