VACCUM SIZING AND COOLING TANK

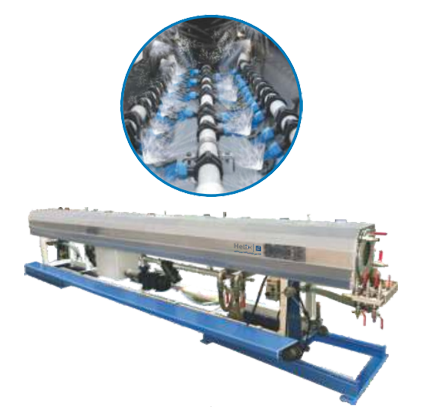

Vaccum Sizing Tank
- Tank available with Mild Steel as well as in S.S 304.
-
Easy cleaning bayonet type spray nozzle provided.
-
Mechanical Seal/Water Ring type Vacuum Pump.
-
Additional vacuum chamber and motorized axial movement.
-
Provided from UVST and above for quick startup and less wastage.
-
Manual slide rail arrangement for Axial and transverse movement of the tank.
-
Dual vacuum spray tanks on common frame for dual pipe extrusion line.
-
Imported lters for online cleaning.
-
Electrical operated valves optionally.
-
Cyclone separator for vacuum pump optionally.
-
Pressure gauge on water lters to see the blockage of lter.
Vaccum Cooling Tank
- Tank available with Mild Steel as well as in S.S 304.
-
Easy cleaning bayonet type spray nozzle provided.
-
Manual / motorized longitudinal adjustment on rail.
-
Fixed structure provided in extra cooling tank.
-
Adjustable spray nozzle pipes (above TCT-250 Model).
-
Appropriate working platform is provided.
-
Special type of Filter for cleaning during operation.
-
Height adjustable manually.
-
Appropriate working platform is provided.
Vaccum Tank Specification
| MODEL |
|
HVT 110 |
HVT 200 |
HVT 250 |
HVT 315 |
HVT 450 |
HVT 630 |
| Pipe Range |
mm |
20-110 |
20-200 |
20-250 |
75-315 |
110-450 |
110-630 |
| Length of Tank |
mm |
4000-6000 |
6000 |
6000 |
6000-9000 |
6000-9000 |
6000-8000 |
| No. of Vacuum Chamber |
- |
Single |
Single |
Single |
Double |
Double |
Double |
Cooling Tank Specification
| MODEL |
|
HCT 110 |
HCT 200 |
HCT 250 |
HCT 315 |
HVT 450 |
HVT 630 |
| Pipe Range |
mm |
20-110 |
20-200 |
20-250 |
75-315 |
110-450 |
110-630 |
| Length of Tank |
mm |
4000-6000 |
4000-6000 |
4000-6000 |
6000 |
6000 |
6000-8000 |
| No. of Vacuum Chamber |
- |
Single |
Single |
Single |
Single |
Single |
Single |
