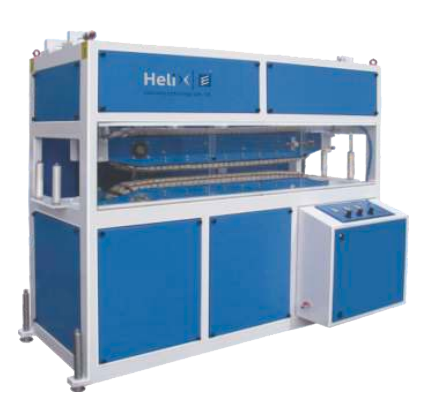

TRACTION UNIT
TRACTION UNIT
- Integrated synchronization of the precise line.
-
Multi belt – 2/4/6 belts – o vality free pipes.
-
Minimum velocity range signicantly decreased.
-
Very low chain wear.
-
Slip control.
-
Servo Design Available optionally.
-
Individual Gear Box System with Servo Drive and Motor.
-
Track adjustment by pneumatic control and Manual Control.
-
Self adjustment track suspension provided with Pneumatic System.
-
Counter balance pressure to balance.
-
Track weight for thin pipes offered.
-
Encoder for length measurement & feed back arrangement offered optionally.
-
Easy accessibility for maintenance of all components.
-
Dual twin-track traction units for dual pipe extrusion line.
-
Easily removable rubber pads / M olded Rubber Chain
Pipe Traction Unit Specification
| MODEL |
|
HTU 110 |
HTU 200 |
HTU 250 |
HTU 315 |
HTU 450 |
HTU 630 |
| Pipe Range |
mm |
20-110 |
20-200 |
50-250 |
75-315 |
110-450 |
110-630 |
| No. of Tracks |
- |
2 |
2 |
2 |
03-Apr |
4 |
04-Jun |
| Pipe Contact Length |
mm |
800 |
1100 |
1100 |
1200 |
1600 |
1450 |
| Line Speed |
m/min |
15 |
10 |
10 |
10 |
4.5 |
5 |
